Description

AI Functions: Human Detection

Brand Name: ANNKE

Color: WHITE

Connectivity: RJ45

High Definition: 12.0 Megapixels

IP Rating: IP67

IR Distance(m): 30 m

Installation: Ceiling,Side,Normal,Wall Mounted

Lens (mm): 2.8mm

Lens Quantity: Single Lens

Megapixels: 12mp

Model Number: C1200

Power Supply: With Poe

Rechargeable Battery: Built in

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Plastic

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

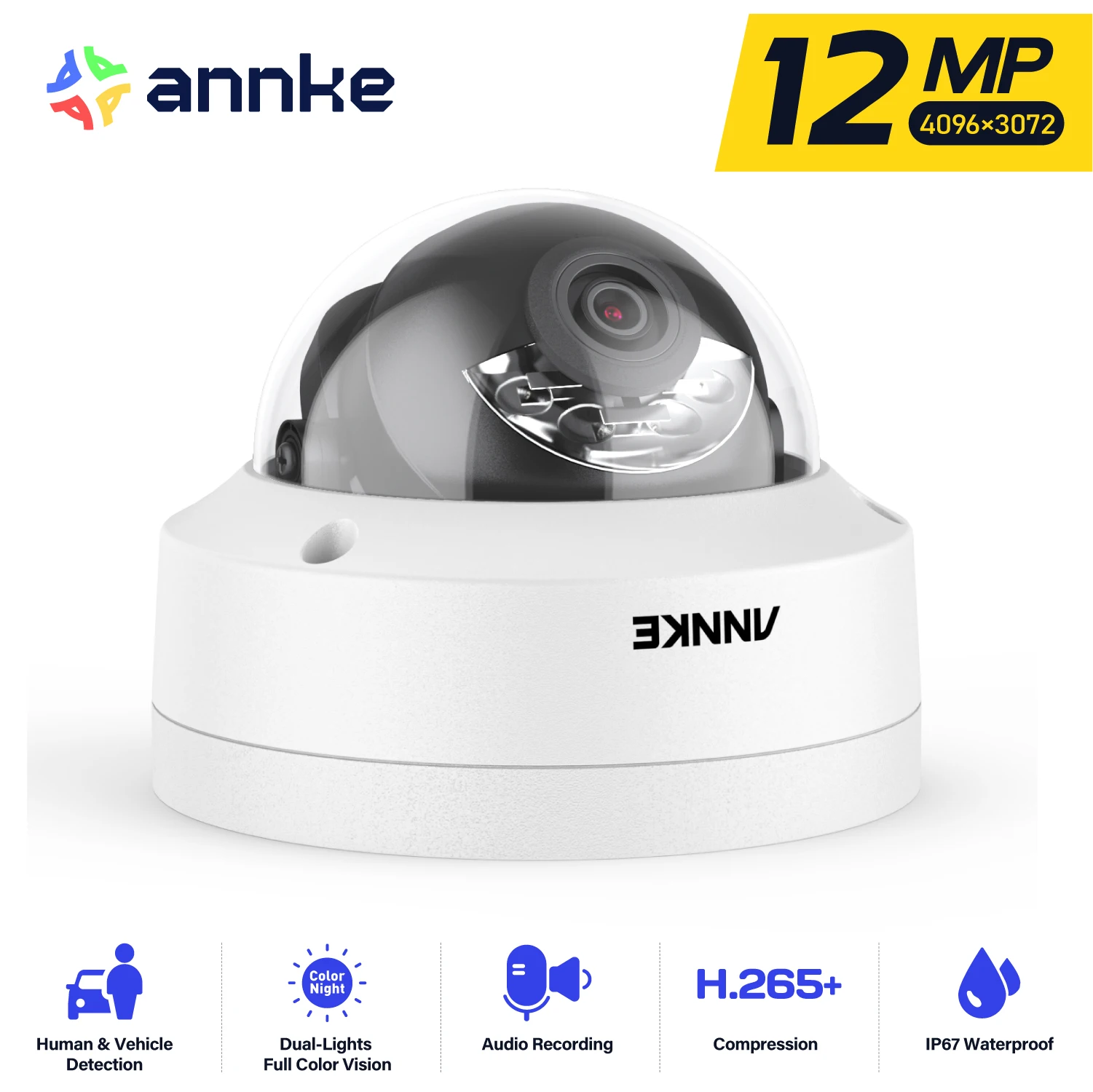

★ 12MP Smart Dual-Light Network Camera

★ Motion detection 2.0 with people and vehicle detection

★ Efficient H.265+ compression technology

★ 2.8mm@F1.6 lens brings everything back to life

★ Built-in microphone for real-time audio security

★ Support up to 512GB SD card storage

★ Clear imaging even with strong back lighting due to 120 dB WDR

★ IP67 Dust and Waterproof Rating

★ Support PoE (Power over Ethernet)&DC12V





ANNKE 12MP image quality, output 4096*3072 screen

1/2.7″ Progressive Scan BSI CMOS IMAGE SENSOR, output 4096*3072 high-definition image quality, clear vision.

12MP Visual Experience: More Detailed Images

Cutting-edge 12MP security camera, delivering unrivaled clarity with a staggering 4096 x 3072 resolution. See every detail in vivid precision, ensuring nothing escapes your watchful eye. The 2.8mm@F1.6 lens guarantees impeccable low-light performance, capturing crisp, well-defined images even in challenging conditions.

Smart dual light:

By default, the infrared light is on at night and the picture is black and white.

When a person or vehicle is triggered, the infrared light goes out and the white light turns on to turn into a color picture. The color picture is better than the black and white picture.

Three modes to choose from: infrared and white light fill light up to 30 meters.Elevate Security Precision: Deep Learning Algorithms

With Motion Detection 2.0, rest assured that you’ll only receive alerts for relevant activity – eliminating 99% of unwanted notifications caused by animals, weather elements, or non-essential objects. Our system intelligently focuses on human and vehicle shapes by default, drastically reducing false alarms.Built-in high-sensitivity pickup, supports environmental noise filtering, and can also record during video recording【Smart Search & Playback】

This smart PoE camer makes it easier for you to find what you want in loads of videos and helps you to locate the vital clips in a sec. What’s more, you can access&control the C1200 camera to perform remote access via the ANNKE APP.【Memory Card & NVR Storage Allowed】

The camera not only supports up to 512GB microSD card(not included) to store but NVR recording. ANNKE NVR works best with this 12MP PoE camera, which can let you enjoy crystal-clear image quality without distortion, extra-long recording and use less bandwidth.



12MP IP Camera
Camera	Image Sensor	1/2.7″ Progressive Scan CMOS
	Max resolution	4096*3072(12MP)
	Main Stream	50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) 60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)
	Substream	50 Hz: 12.5 fps (1280*720, 640*480, 640*360) 60 Hz: 15 fps (1280*720, 640*480, 640*360)
	Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
	Video Bitrate	32 Kbps – 16 Mbps
	Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
	Audio Input	Built-in Microphone, record with audio
	Lens	2.8 mm
	Min. Illumination	Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
	Angle of View	Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
	Supplement Light Type	Smart Dual-Light, IR, White Light
	Supplement Light Range	Up to 30 m
	Motion detection 2.0	Supoort, include Human & Vehicle detection
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	120 dB WDR
	Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
	API	Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G)
	Region of Interest (ROI)	1 fixed region for main stream
	Privacy Mask	4 programmable polygon privacy masks
	General Function	Rotate mode, mirror, password protection, remote access
	Ethernet	1 RJ45 10 M/100 M self-adaptive Ethernet port
General	Housing	Metal & Plastic
	Color	White & Black
	Storage	Built-in microSD/SDHC/SDXC Slot, up to 512 GB
	Hardware Reset	Yes
	Operating Power	DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
	Operating Temperature	-22 °F – 140 °F/-30 °C – 60 °C
	Indoor/Outdoor Use	Indoor/Outdoor
	Interface Protection	IP67
	Dimension (L X W X H)	170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)
	Weight	0.6 lb./285 g
